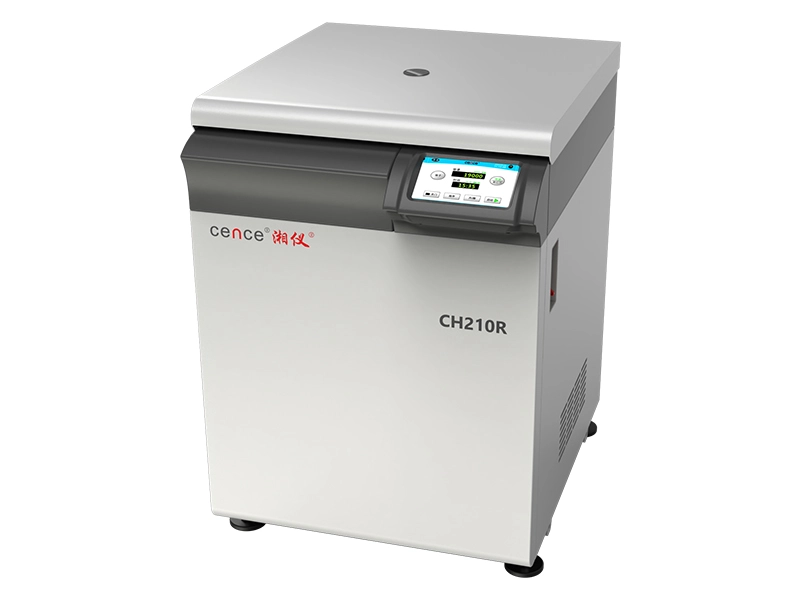

CH210R 4x750mL High Speed Refrigerated Centrifuge

Name: CH210R 4x750mL High Speed Refrigerated Centrifuge
Brand: Hunan Xiang Yi Laboratory Instrument Development Co., Ltd.
Rating: 4.8 (50 reviews)

CH210R Large Capacity High Speed Refrigerated Centrifuge

CH210R adopt the latest VF compressor with PID dynamic intelligent temperature control technology ( Patent NO: zl201922274761.7 ) and dual channel frequency conversion refrigeration system (Patent NO: zl201922269242.1). It's top level in the world, meet customers' high-precision temperature control experiments and protect temperature sensitive samples. It is the first choice for molecular biology, protein, DNA, RNA, cell separation and clinical medicine.

Advantages Of CH210R High Speed Refrigerated Centrifuge

7-inch HD touch screen, Setting parameters and running parameters at a glance.
Input the value directly by touch screen for parameter setting, which is fast and convenient.
According to the time interval of the experiment, the sleep time of the instrument ca be set ( user-defined ), which can ensure the good refrigeration effect as well as save energy and increase the service life of the instrument.
Pre-cooling function available. pre-cooling parameters can be customized according to different rotors. And it can be scheduled in advance, so the experiment can be carried out once entering the laboratory to save time.
100 user-defined program groups can be set and named easily. which is more convenient to call and distinguish different experiments in use, so as to realize the repeatability of the experiment.
Up to 5 groups of programs can be selected to realize step centrifugation, so that the experiment can be carried out in multiple steps at one time.
11 Acceleration and 12 Deceleration rates, to achieve best centrifugal effect.
The running records and diagnostic records are saved automatically, user can effectively check the operation of the instrument and the separation of each batch of samples.
AC variable frequency motor, no carbon pollution, maintenance free, long service life and accurate speed control accuracy (less than 10r / min).

Technical Parameter Of CH210R High Speed Refrigerated Centrifuge

Model	CH210R
Order No.	202253015
Max. Speed	Angle Rotor 21000r/min
Max. Speed	Swing Rotor 4200r/min
Max. RCF	Angle Rotor 32752xg
Max. RCF	Swing Rotor 3860xg
Max. Capacity	Angle Rotor 6x100ml
Max. Capacity	Swing Rotor 4x750ml
Speed Accuracy	±10r/min
Time Setting Range	1s to 99min59s/1min to 99h59min
Timing Mode	Start timing after spinning, Start timing after reach setting speed, Continuous timing, Short spinning
Temperature Setting Range	-20℃～40℃
Temperature Accuracy	Max. speed temperature controlled to 4℃, ±0.5℃
Pre-cooling Function	Yes
Compressor Unit	VF compressor unit（134a）
Noise	≤65dB(A)
Short Spinning	Yes
Rotor Identification	Yes
Power Supply	AC220V±22V, 50/60Hz
Power Consumption	1.6kW
Dimension (WxDxH)	590x740x850mm
Packing Dimension (WxDxH)	750x880x1200mm
Weight	180kg
