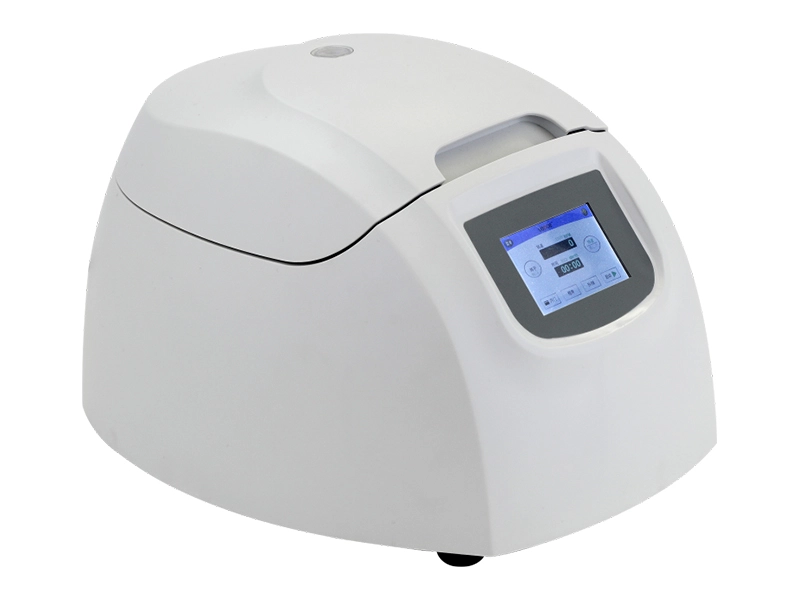

TG12M Hematocrit Centrifuge
The TG12M Hematocrit Centrifuge is used for determination of volume fractions of erythrocytes in blood and also for separation of micro blood and solutions.
Parameters can be set freely during a run.
Microprocessor control, DC brushless motor for stable and low noise operation.
G-force can be calculated automatically.
With a self-diagnosis system, this blood centrifuge machine can automatically identify faults, including overspeed, no speed signal, and door lid interlock issues, significantly improving safety.
The countdown time is displayed in seconds if the centrifugation time is less than 1 minute.
5-inch HD touch screen, simple interface, setting parameters, and running parameters at a glance.
Model | TG12M |
Order No. | 203160000 |
Max. Speed | 12000r/min |
Max. RCF | 14800xg |
Max. Capacity | 36 capillaries |
Speed Accuracy | ±30/min |
Time Setting Range | 1min to 99min |
Noise | ≤ 65dB(A) |
Power Supply | AC220V±22V 50Hz |
Power Consumption | 300W |
Dimension (WxDxH) | 320x370x235mm |
Packing Dimension (WxDxH) | 530x410x290mm |
Weight | 11kg |
