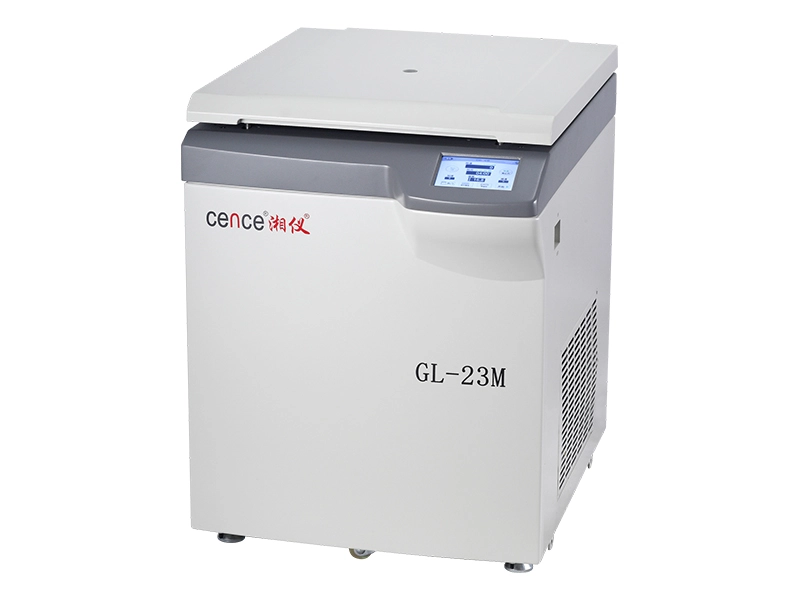

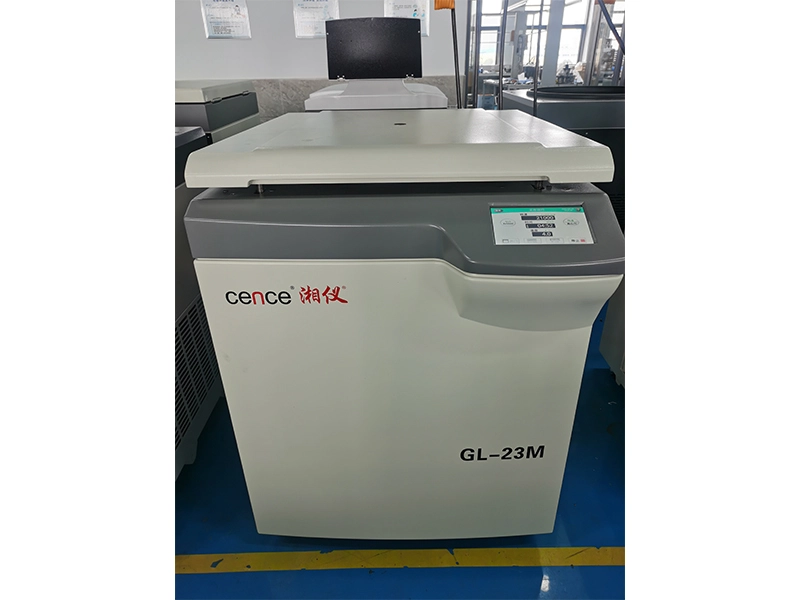

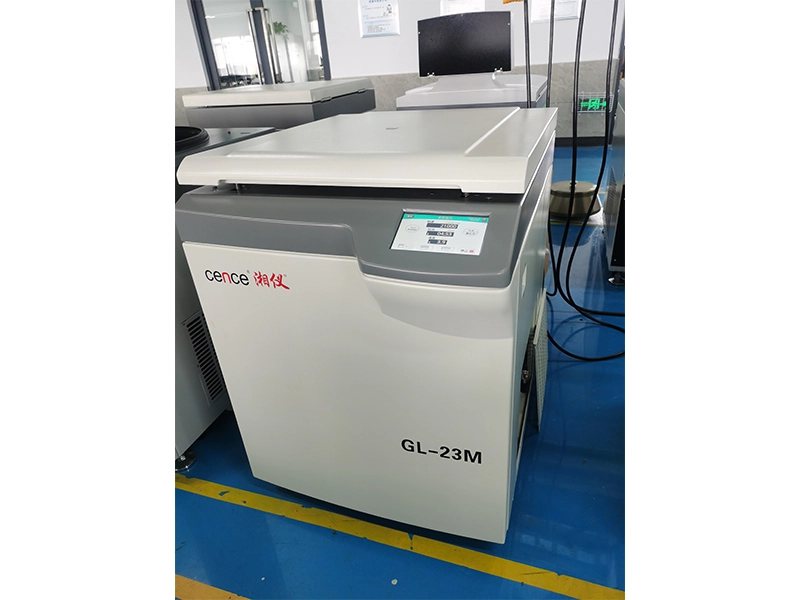

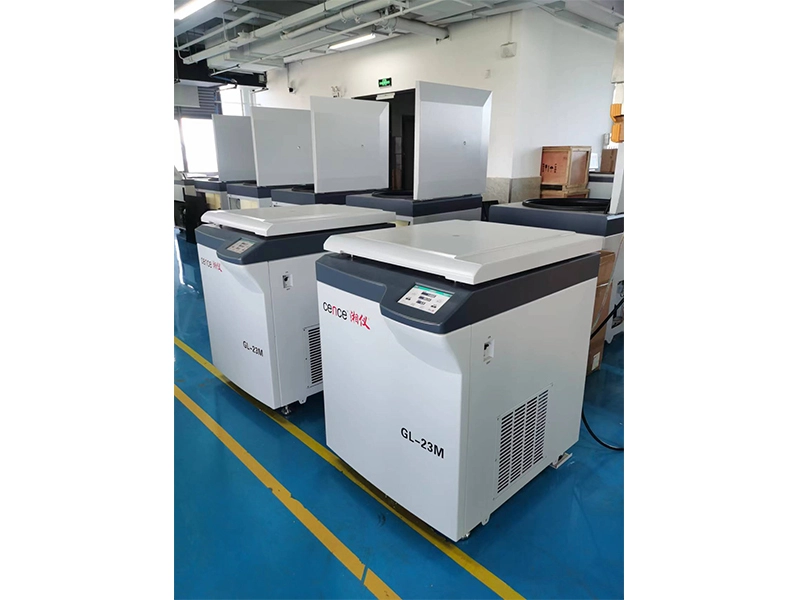

GL-23M 4x1000mL High Speed Refrigerated Centrifuge

Name: GL-23M 4x1000mL High Speed Refrigerated Centrifuge
Brand: Hunan Xiang Yi Laboratory Instrument Development Co., Ltd.
Rating: 4.8 (50 reviews)

The parameters and indicators of the GL-23M large capacity high-speed freezing centrifuge have reached the international leading level. It can separate and concentrate cytoplasm, viral cells, chemical substances, etc., and is widely used in high-tech fields such as molecular biology and biochemistry.

Advantages of GL-23M High Volume Centrifuge

7-inch large-sized high-definition touch screen control, easy to operate, intuitive display, parameter setting and real-time operation parameters displayed on the same screen.
Large capacity data storage, capable of storing several months of operation data, fault records, etc., convenient for tracking operation information. Users can customize and edit hundreds of running programs and provide detailed information descriptions for each customized program.
The super strong control system can achieve functions such as step centrifugation, reservation start, sample ID, curve mode, program mode, and multi language selection.
Excellent security performance, selectable for user management, to prevent accidental program tampering or deletion.
Safe and stable centrifugal performance, with a maximum speed of 23000 r/min, and a variety of rotor specifications available, easily helping you achieve rapid sample separation
Various protection functions such as automatic rotor recognition, imbalance, overspeed, door cover protection, etc.

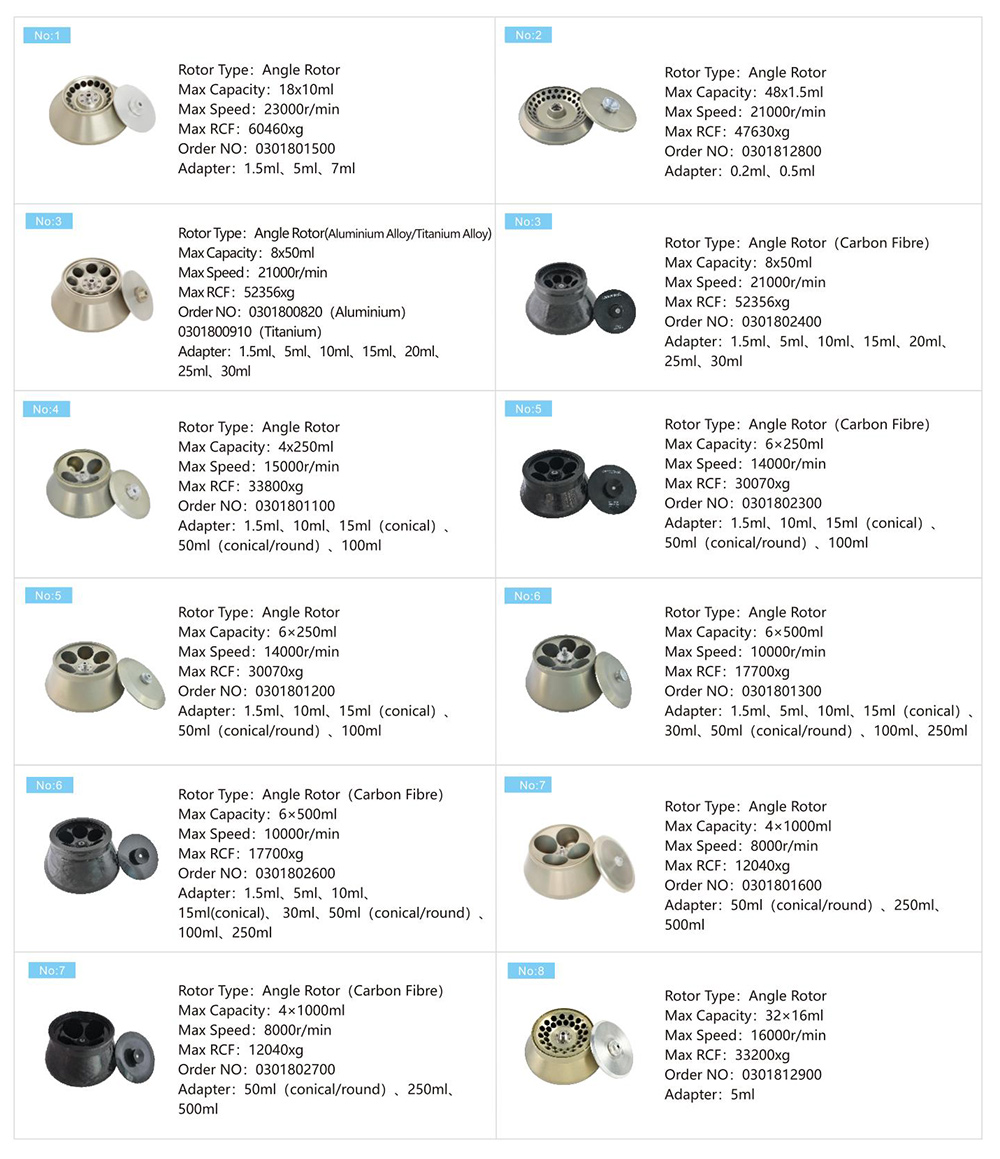

All aluminum alloy rotors are forged with 7075-T6 series alloy aluminum, which has high strength, long service life, and high safety. The surface is made of hard oxidation, with a thick oxide layer and strong corrosion resistance.
Simple installation and positioning of the rotating head, simply place the rotating head on the drive shaft to complete the installation and positioning, without the need for tedious screw fixation or button operation.

Technical Parameter Of GL-23M High Volume Centrifuge

Model	GL-23M
Order No.	202125000
Max. Speed	Angle rotor 23000r/min
Max. Speed	Swing rotor 4000r/min
Max. RCF	Angle rotor 60460xg
Max. RCF	Swing rotor 3500xg
Max. Capacity	Angle rotor 4x1000ml
Max. Capacity	Swing rotor 4x750ml
Speed Accuracy	±10r/min
Time Setting Range	1min to 99h 59min
Timing Mode	Start timing after spinning, Start timing after reach setting speed, Continuous timing, Short spinning
Temperature Setting Range	-20℃ to 40℃(Step 1℃ adjustable)
Pre-cooling Function	Yes
Temperature Accuracy	±1℃
Steps Centrifugation	Yes(100 programs, each programs with 5 steps, More programs can be saved by adding external memory card)
Compressor Unit	High Performance Compressor Unit; Environment-friendly Refrigerant(R404a)
Drive system	High torque brushless motor
Power Supply	AC220V±22V, 50Hz
Power Consumption	5kW
Noise	≤65dB(A)
Dimension (WxDxH)	730x930x960mm
Packing Dimension (WxDxH)	880x1120x1180mm
Weight	260kg
